User Guide

ENUK

Complete guide for users of SQL Cor: every button, every field, every message explained.

---

Who this guide is for

This guide is for anyone who uses SQL Cor to run SQL queries — administrators, analysts, power users. It assumes you know basic SQL (SELECT, WHERE, JOIN). You don’t need to be a database expert — SQL Cor has safety mechanisms that prevent most accidents.

If you are configuring SQL Cor for your team (access rules, blacklist, limits), see Admin Guide instead.

For a quick one-page reference of all buttons, see Feature Reference. For all keyboard shortcuts, see Keyboard Shortcuts. For all system messages and what they mean, see Message Reference.

---

Opening SQL Cor

1. Log in to Creatio
2. Open the main navigation menu (top-left)
3. Click SQL Terminal in the list

If you don’t see SQL Terminal: you either haven’t been granted access, or need to refresh your browser (Ctrl + Shift + R). Contact your administrator.

---

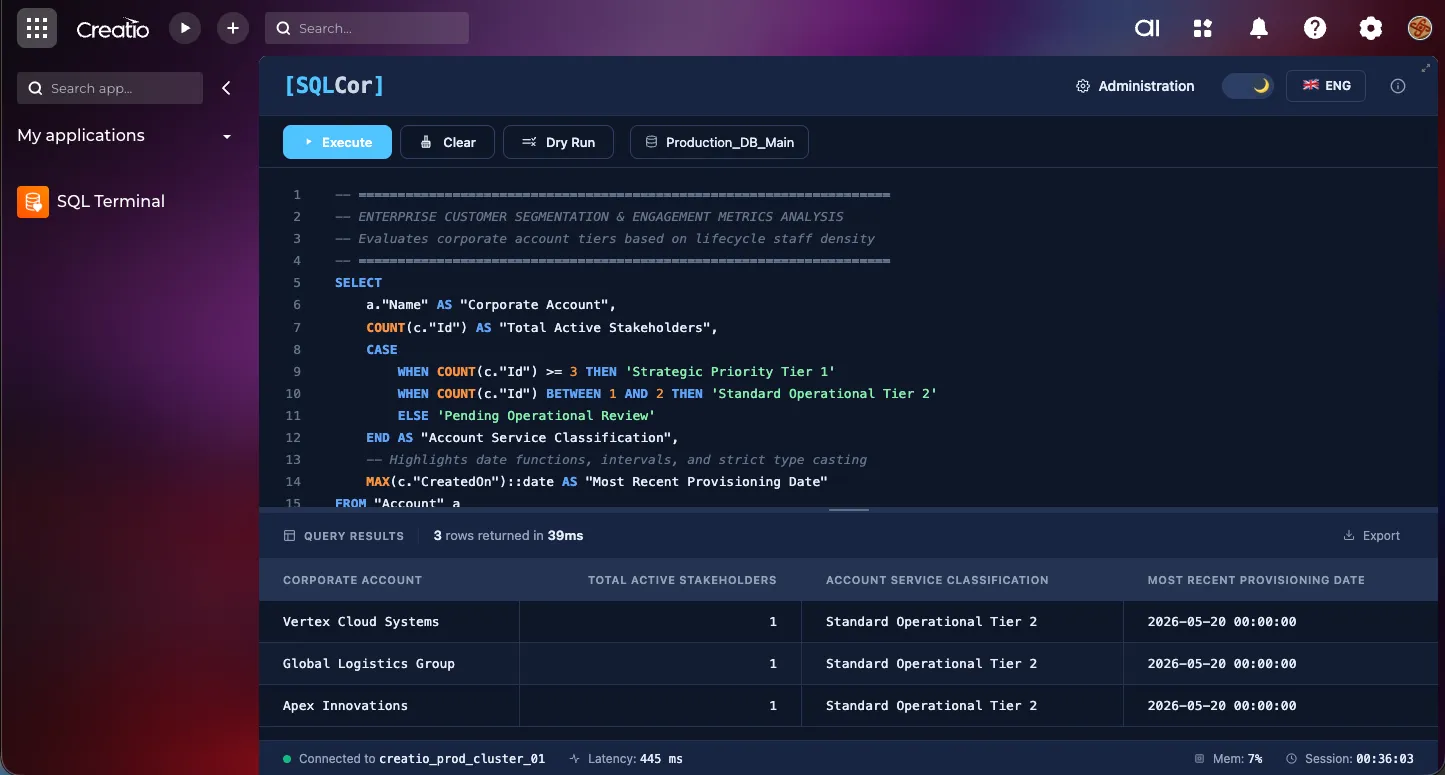

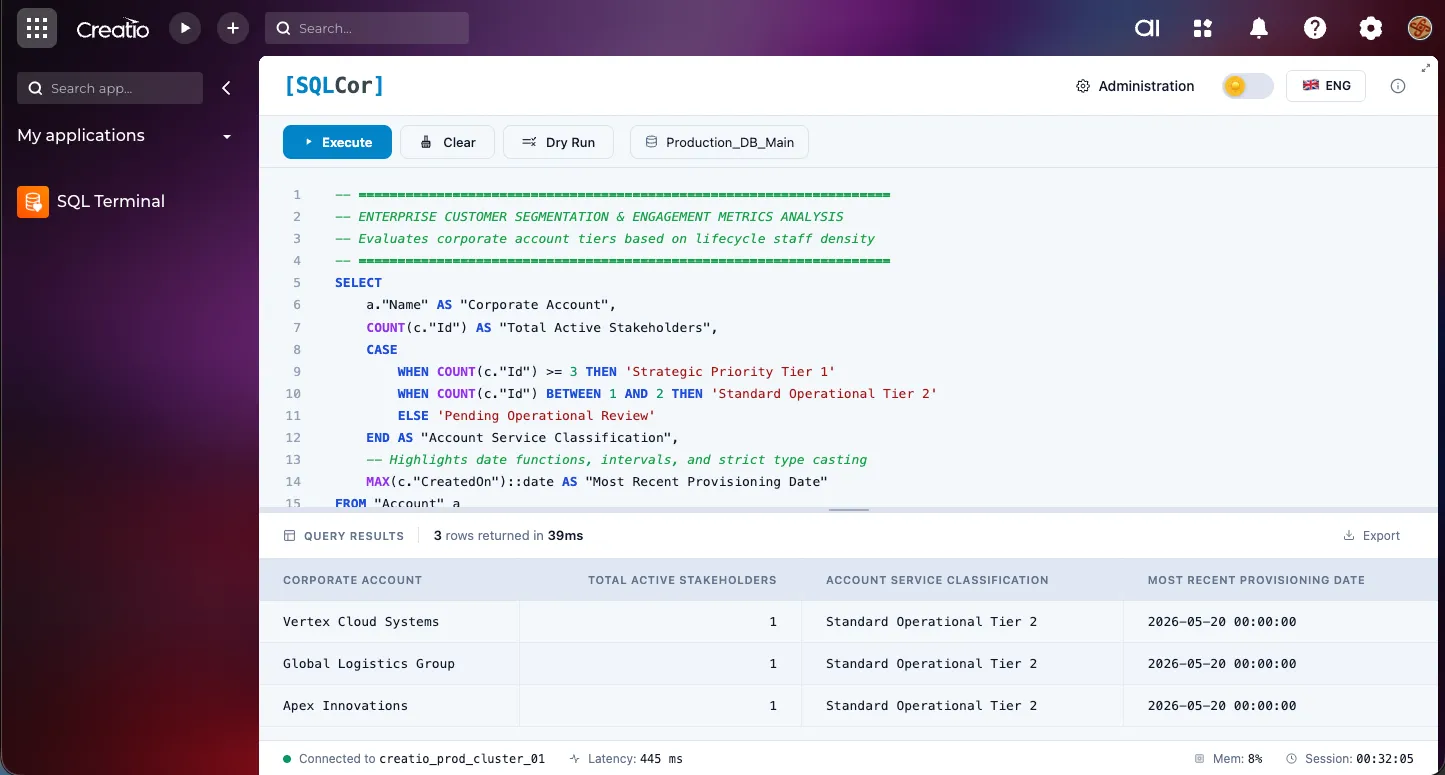

Page layout overview

The SQL Terminal page has six zones:

---

Header

The header runs across the top. The right side contains four controls.

Administration button

Property	Detail
Visible to	System administrators only
Hidden from	Regular users — this button does not appear for non-admins
What it does	Switches to the Administration panel
Editor preserved?	Yes — your current query stays in the editor when you switch back

---

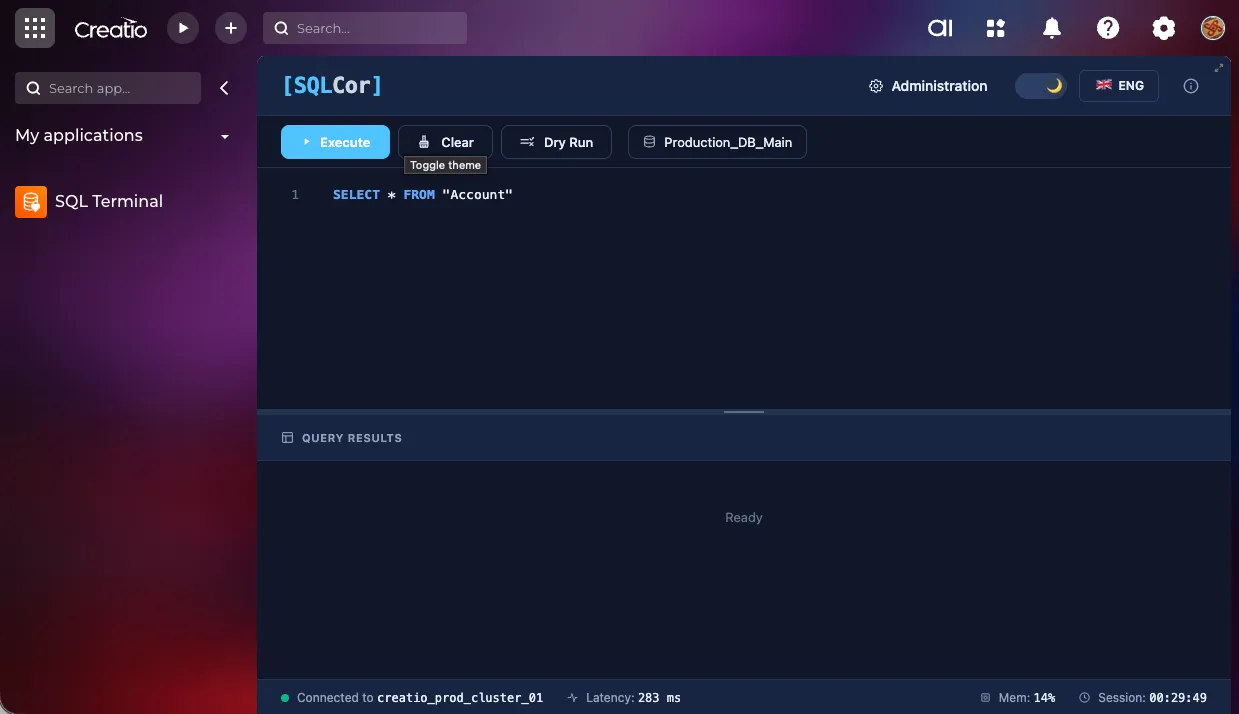

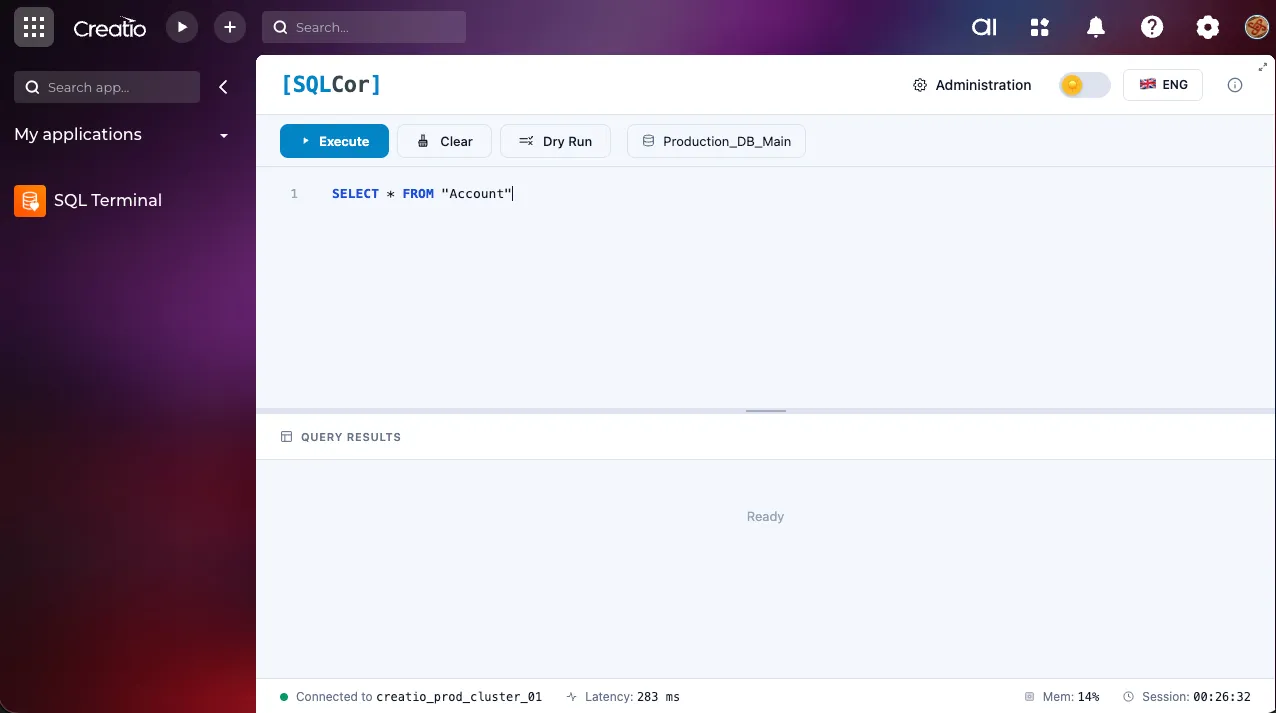

Theme toggle

Property	Detail
Options	Dark theme (default) / Light theme
Applies to	Entire SQL Cor interface
Saved	In browser localStorage — persists after refresh and new sessions
Per device	Yes — each browser/device has its own saved preference

---

Language button

Property	Detail
Options	Ukrainian / English
What changes	All UI labels, button text, hints, and messages
What does NOT change	Database content, SQL keywords, DB engine error messages
Applies immediately	Yes — no page reload needed
Saved	In browser localStorage

---

About button

Property	Detail
What it opens	ABOUT modal window
Contents	Package version number, key features list (Secure access · Audit trail · Role-based), contact info
How to close	Click outside the modal, or press Escape

---

Toolbar

The toolbar sits below the header and contains four controls.

Execute button

Purpose: Sends your SQL to the backend and runs it.

Keyboard shortcuts: F5 · Ctrl + Enter · Cmd + Enter

What happens when you click Execute:

1. SQL is sent to the backend
2. Backend checks your access level
3. Backend checks blacklist
4. Backend checks operation type vs your access level
5. If all checks pass → query runs against the database
6. Results appear in the Results panel
7. Footer latency updates

Special case — DELETE without Dry Run: If your query contains DELETE and Dry Run is OFF, a confirmation dialog appears before execution. See Destructive Operation Dialog.

If your query is blocked: An error message appears in the Results panel explaining why (blacklist match, access level, etc.).

---

Clear button

Purpose: Empties the editor and returns focus to it.

What is cleared	What is NOT cleared
Editor content	Results panel
Editor undo history	Footer statistics
	Smart Hints
	localStorage autosave (may restore on refresh)

---

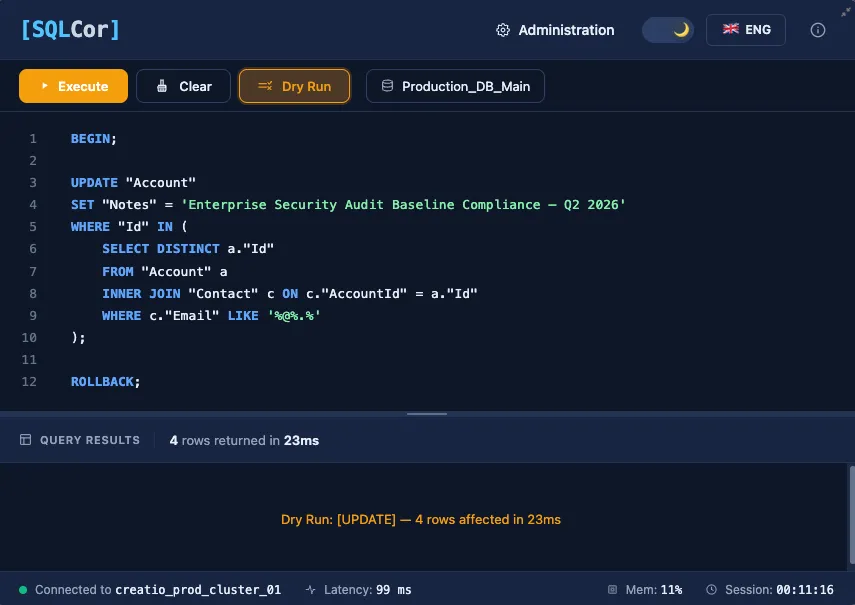

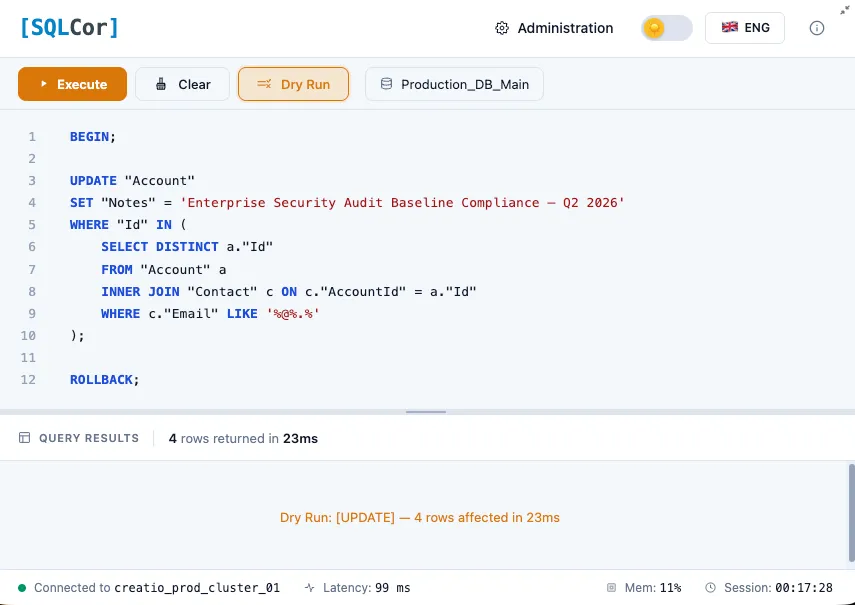

Dry Run toggle

Purpose: Enables safe testing mode — runs your query in a transaction that is always rolled back.

Visual: Button appears highlighted/active when Dry Run is ON.

How Dry Run works technically:

1. Backend opens a database transaction
2. Your query executes INSIDE the transaction (for real)
3. Backend collects results (row count, errors, constraint violations)
4. Transaction is ALWAYS ROLLED BACK — no changes committed
5. You see accurate results as if the query ran permanently

What this means:

Aspect	What happens in Dry Run
Row count	Accurate — shows actual rows that would be affected
Error detection	Real — constraint violations, syntax errors surface correctly
Data changes	None — everything is rolled back
Database triggers	May fire (this is normal for transaction-based testing)
SELECT queries	Same result as without Dry Run — no difference

When to use Dry Run:

• Before any UPDATE or DELETE that affects multiple rows
• When testing a complex INSERT for constraint violations
• When you’re uncertain about your WHERE clause scope
• Any time you want to know “how many rows would this affect?”

✓

Tip Best Practice for DELETE

Always run with Dry Run first. Check the row count. Only then disable Dry Run and execute for real.

i

Note Triggers Still Fire

Database triggers may fire during Dry Run (this is expected — the query runs inside a real transaction). The trigger effects are rolled back along with everything else.

---

Database indicator

Purpose: Shows the name of the database SQL Cor is connected to.

Example: Production_DB_Main

Is it clickable? No — information only. You cannot switch databases.

Why it matters: In organizations with multiple Creatio environments (production, staging, test), this confirms which environment you’re currently querying.

---

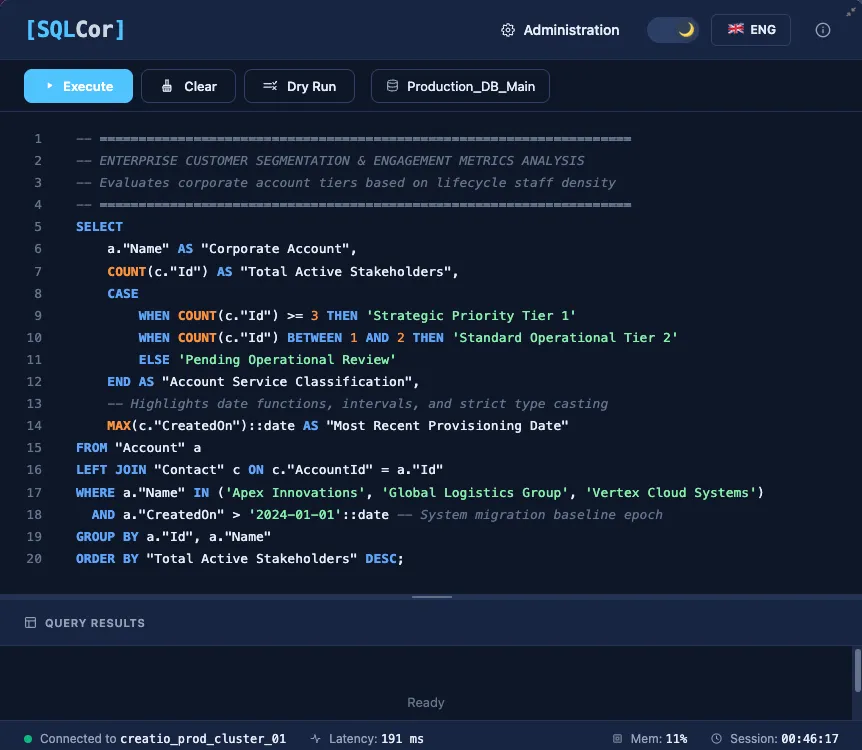

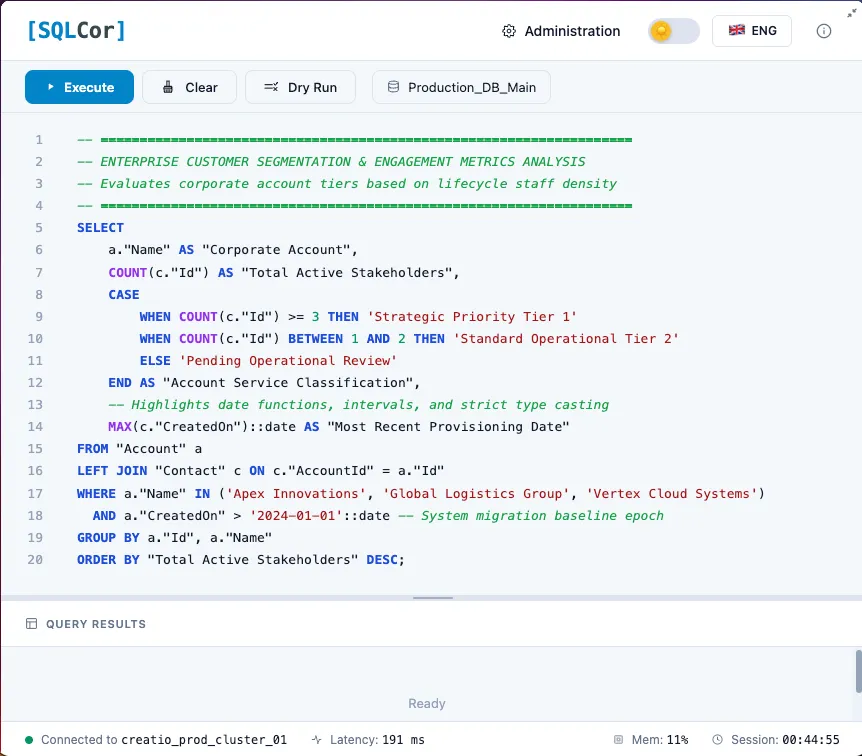

Editor

The editor is where you write SQL. It has several built-in features.

Syntax highlighting

Element	Color (dark theme)
SQL keywords (SELECT, FROM, WHERE…)	Cyan / Blue
String literals ('value')	Orange / Yellow
Comments (-- or /* */)	Gray
Numbers	Green
Table / column names	White

Line numbers

Displayed automatically on the left. Updates as you type.

Tab indentation

Pressing Tab inserts indentation — useful for formatting multi-line queries.

Autosave

The editor saves your current query to localStorage automatically as you type. If you refresh the page or navigate away and return, your last query is restored.

Keyboard shortcuts

Shortcut	Action
F5	Execute query
Ctrl + Enter / Cmd + Enter	Execute query
Tab	Insert indentation
Ctrl + A / Cmd + A	Select all text
Ctrl + Z / Cmd + Z	Undo
Ctrl + Y / Cmd + Y	Redo
Ctrl + / / Cmd + /	Comment / uncomment line

PostgreSQL identifier quoting — important

Creatio uses Pascal-case table names (Contact, Account). PostgreSQL lowercases unquoted identifiers. Always use double quotes:

-- WRONG (PostgreSQL sees "contact" — doesn't exist):
SELECT * FROM Contact;

-- CORRECT:
SELECT * FROM "Contact";

SQL Cor’s Smart Hints will remind you automatically if this error occurs.

ReadOnly user restriction — multi-statement queries

If your access level is ReadOnly, queries containing a semicolon separating multiple statements are rejected entirely to prevent injection-style escalation:

-- Rejected for ReadOnly users:
SELECT 1; DROP TABLE "Contact";

-- Allowed — single statement only:
SELECT * FROM "Contact" LIMIT 10;

---

Smart Hints

Smart Hints is a yellow information bar that appears above the Results panel when SQL Cor detects a specific error pattern or query issue. It suggests a fix and offers to correct your query automatically.

How Smart Hints works

Smart Hints appears automatically after query execution — you don’t activate it manually. It analyzes the error or query and shows a relevant tip.

Each hint may include an INSERT INTO EDITOR button that replaces your current query with a corrected template.

Hint 1 — Case-sensitive table name (PostgreSQL)

Triggered when: Error “relation X does not exist” and table written without quotes.

Message: “PostgreSQL is case-sensitive. Try wrapping the table name in double quotes: "Account"”

INSERT INTO EDITOR: Rewrites query with quoted table name.

-- Before:  SELECT * FROM Account;
-- After:   SELECT * FROM "Account";

---

Hint 2 — TOP vs LIMIT syntax

Triggered when: Query contains SELECT TOP N (MSSQL syntax).

Message: “On PostgreSQL, use LIMIT instead of TOP. Example: SELECT * FROM “Table” LIMIT 10”

INSERT INTO EDITOR: Converts SELECT TOP N to SELECT ... LIMIT N.

-- Before:  SELECT TOP 10 * FROM "Contact";
-- After:   SELECT * FROM "Contact" LIMIT 10;

---

Hint 3 — Permission error

Triggered when: Query fails with a database-level “permission denied”.

Message: “Permission error. Check your access level in Administration → Access Control.”

No INSERT INTO EDITOR — this is informational only.

What to do: Contact your administrator to request a higher access level.

---

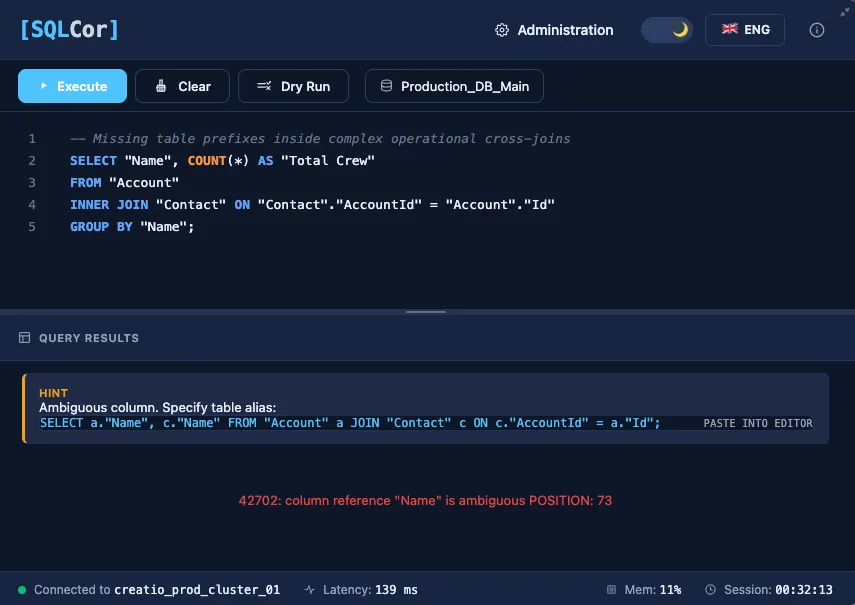

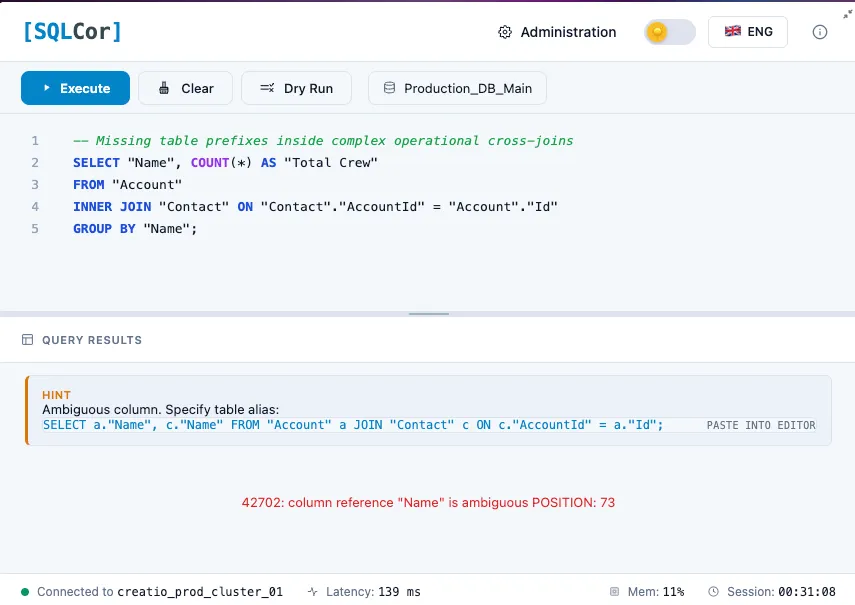

Hint 4 — Ambiguous column reference

Triggered when: Error “column reference X is ambiguous” (typically in JOINs).

Message: “Column is ambiguous. Add the table alias prefix: t."ColumnName"”

INSERT INTO EDITOR: Provides a corrected query template with table aliases.

-- Before:  SELECT "Name" FROM "Contact" JOIN "Account" ON ...
-- After:   SELECT c."Name" FROM "Contact" c JOIN "Account" a ON ...

---

Dismissing Smart Hints

Smart Hints disappears when:

• You execute a new successful query
• You clear the editor

---

Results panel

The Results panel shows your query output.

Data table (SELECT queries)

Data type	Display
NULL values	Italic NULL text
Boolean TRUE	Green highlight
Boolean FALSE	Red highlight
Numbers	Right-aligned
Text	Left-aligned
Long text	Truncated ... (hover for full value)

Row limit notice: If results are truncated by the Max Rows setting, you see:

“Results limited to X rows. Use LIMIT in your query for precise control.”

Meta information

Displayed below the table:

• SELECT: “X rows returned in Y ms”
• DML: “X rows changed in Y ms”

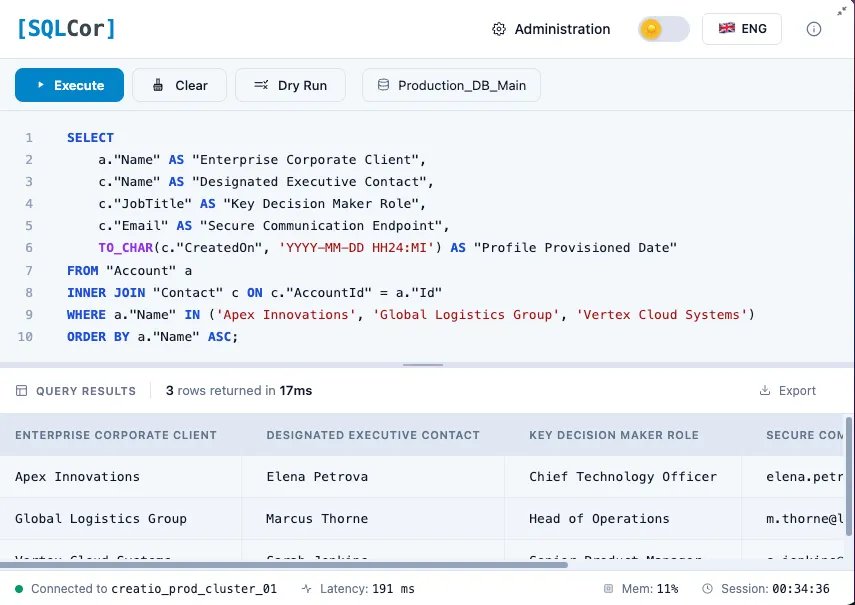

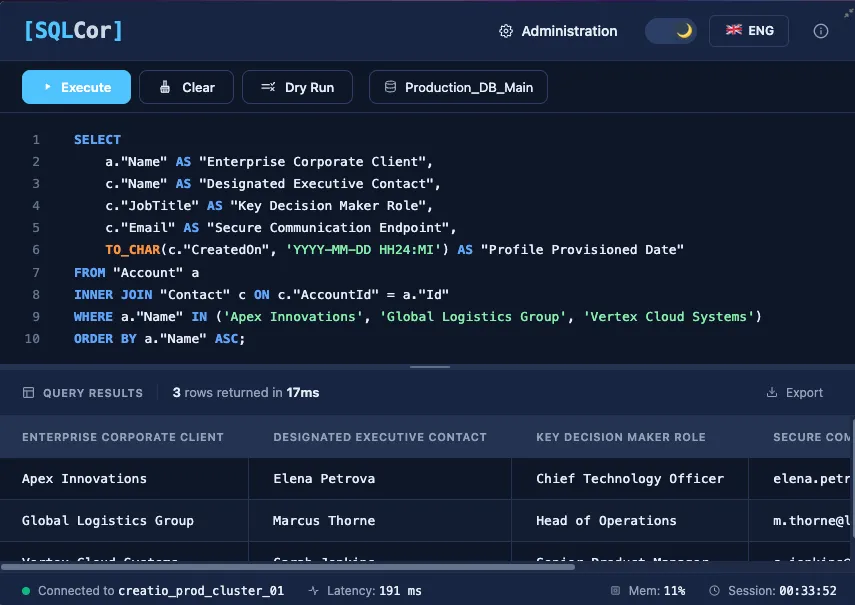

Export button

Property	Detail
File format	CSV
File name	Auto-generated with timestamp: sqlcor_export_YYYYMMDD_HHMMSS.csv
Contents	All visible rows + column headers
Available when	After a successful SELECT that returned rows
NOT available for	DML results, DDL results, empty result sets, error states
Limitation	Exports only rows shown (respects Max Rows limit)

---

Footer (Status bar)

The footer runs across the bottom of the page with four real-time indicators.

Status indicator

Indicator	State	Meaning
🟢 Green	Connected	Database reachable
🔴 Red	Disconnected	Database unavailable
🟡 Yellow	Checking	Connection being tested

If red: try Check Connection in Admin → System Settings, or contact your admin.

Latency (ms)

Time of the last executed query in milliseconds. Updates after each execution.

Typical ranges:

• 50–300ms: Normal
• 300–2000ms: Complex query or moderate DB load
• 2000ms+: Heavy query — consider optimizing or contacting admin

Memory (Mem %)

JavaScript heap memory usage in the browser, as a percentage.

Range	Meaning
Below 60%	Normal
60–80%	Browser working hard — consider refreshing if slow
Above 80%	High memory — refresh the page

This reflects browser memory only, not server or database memory.

Session timer

Time elapsed since you opened SQL Terminal this session. Format: HH:MM:SS. Resets on page refresh, tab close, or logout.

---

Dialogs and popups

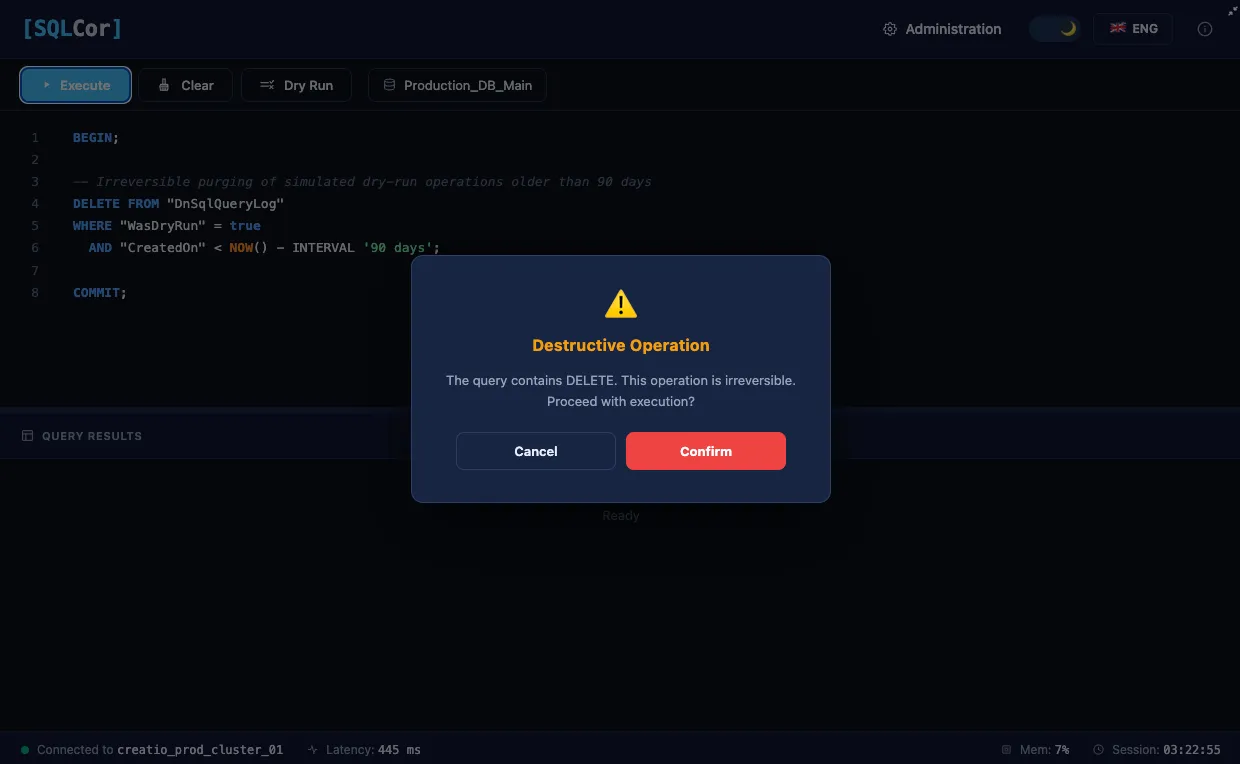

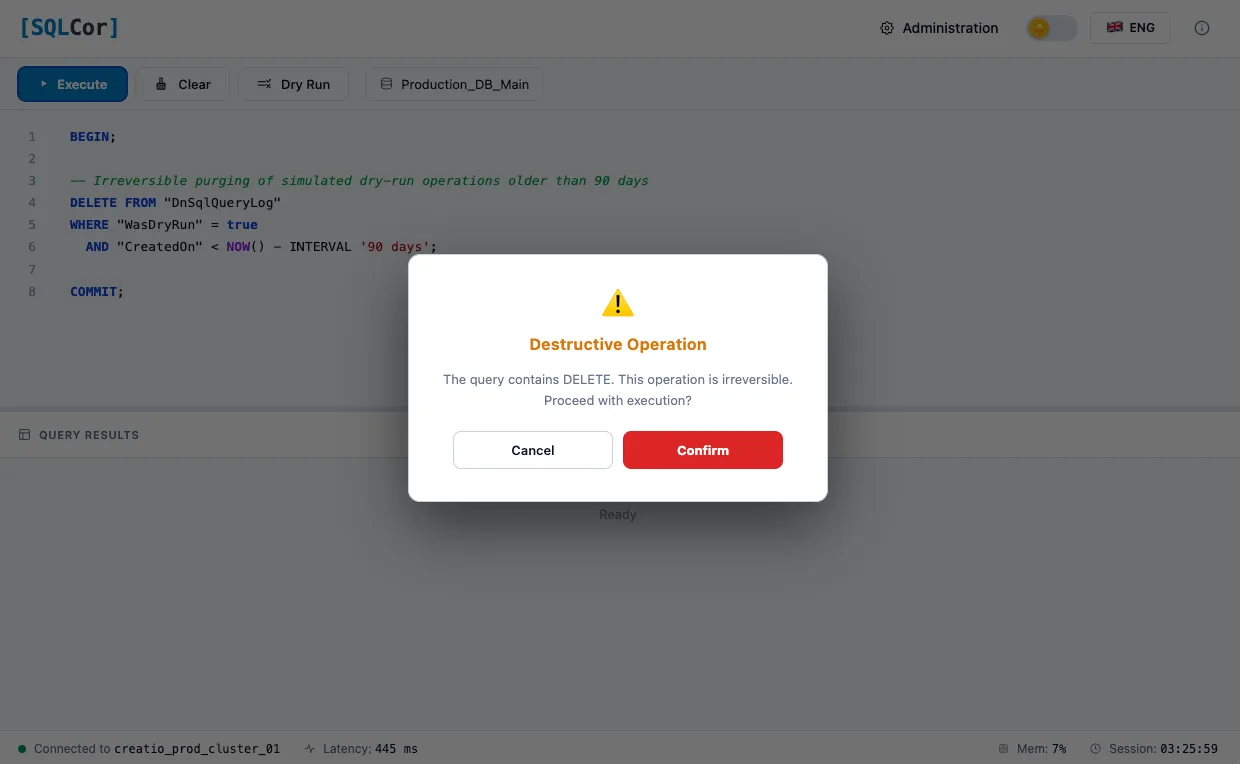

Destructive Operation dialog

Appears when:

• Your query contains DELETE
• Dry Run is OFF

Purpose: Mandatory confirmation before permanent data deletion.

Button	Action
Confirm	Executes the DELETE query
Cancel	Closes dialog — query is NOT executed, editor stays as-is

Best practice: Always use Dry Run first to verify row count, then disable Dry Run and execute with Confirm.

---

Access levels — rules and restrictions

Your administrator assigns your access level. Here’s what each level allows.

ReadOnly

Feature	Behavior
SELECT	✅ Allowed
INSERT / UPDATE / DELETE	❌ Blocked
CREATE / ALTER / DROP	❌ Blocked
Auto-LIMIT injection	✅ Applied if you don’t write LIMIT
Multi-statement queries (;)	❌ Rejected entirely
Dry Run	✅ Available (though no practical effect on SELECT)

Error when trying DML:

“Access denied. Your access level is Read-only. This operation requires DML access.”

---

DML

Feature	Behavior
SELECT	✅ Allowed
INSERT / UPDATE / DELETE	✅ Allowed
CREATE / ALTER / DROP	❌ Blocked
Destructive Operation dialog	✅ Shown for DELETE without Dry Run
System table protection	✅ Cannot modify DnSql* tables
Blacklist rules	✅ Enforced

---

DDL

Feature	Behavior
SELECT / DML	✅ Allowed
CREATE / ALTER / DROP	✅ Allowed on non-system tables
Hardcoded blocked operations	❌ Still blocked (no exceptions)
System table protection	✅ Cannot modify DnSql* tables
Blacklist rules	✅ Enforced

---

Security rules

Hardcoded blocks — always blocked for everyone

These operations cannot be executed by anyone, at any access level, under any configuration:

×

Danger Always Blocked — No Exceptions

The following operations are hardcoded in the backend. No administrator can disable them. They protect against catastrophic or malicious database operations.

Blocked operation	Reason
xp_cmdshell	SQL Server shell execution
pg_read_file	Reading files from the server filesystem
pg_sleep	Intentional DB process blocking
pg_terminate_backend	Killing database connections
OPENROWSET	External data source access
DROP DATABASE	Catastrophic data loss

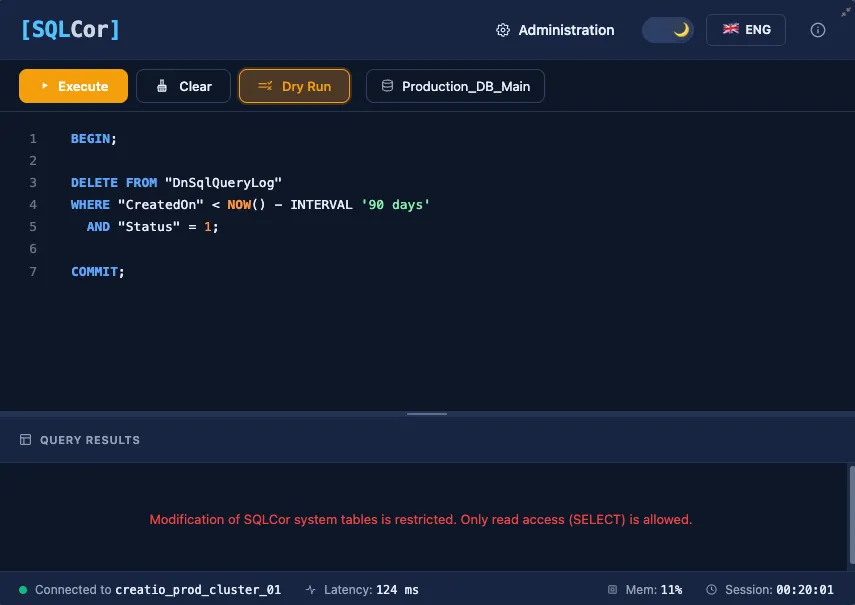

DnSql* table modifications	Protecting SQL Cor’s own config tables

Error when hitting a hardcoded block:

“This query is blocked by the system. Reason: [description]“

Literal masking (invisible to you, but important)

Before checking your query against blacklist patterns, the backend masks all content inside single quotes (string literals). This means:

-- This query is SAFE — the word DROP is inside a string literal
-- SQL Cor's parser correctly identifies it as just a text value
SELECT * FROM "Contact" WHERE "Notes" = 'DROP TABLE example';

You don’t need to do anything special — this protection is automatic.

Audit logging

i

Note Every Query is Logged

Every query you run through SQL Cor is recorded in the audit log — including successful queries, failed queries, blocked attempts, and Dry Run executions. Administrators can review this log at any time.

The log records: who ran it · when · full query text · result status · row count / error · whether it was a Dry Run

Maintenance Mode

If maintenance mode is active, you’ll see a custom message from your administrator when trying to execute:

“[Administrator’s message, e.g.: ‘Database update in progress until 14:00’]”

What to do: Wait and try again later. Query execution is disabled for all non-admin users during maintenance mode.

---

Common tasks

Run a basic SELECT

SELECT "Name", "Email", "Phone"
FROM "Contact"
WHERE "IsActive" = true
LIMIT 20;

Safely test a DELETE

1. Turn ON Dry Run ( button highlights)
2. Write your DELETE query
3. Execute → check row count in results
4. If count is correct: turn OFF Dry Run → execute again
5. Confirm in the Destructive Operation dialog

Find recently created records

SELECT "Name", "CreatedOn"
FROM "Contact"
WHERE "CreatedOn" > NOW() - INTERVAL '7 days'
ORDER BY "CreatedOn" DESC
LIMIT 50;

Export results to CSV

1. Run a SELECT query
2. Click Export in the results panel
3. CSV file downloads automatically

Look up table column names

SELECT column_name, data_type, is_nullable
FROM information_schema.columns
WHERE table_name = 'Contact'
  AND table_schema = 'public'
ORDER BY ordinal_position;

Find your access level

SELECT "AccessLevel", "ValidUntil", "Comment"
FROM "DnSqlAccessRule"
WHERE "UserId" = (
    SELECT "Id" FROM "SysAdminUnit"
    WHERE "Name" = 'your_login_here'
);

JOIN two tables

SELECT
    c."Name" AS "Contact",
    a."Name" AS "Account"
FROM "Contact" c
JOIN "Account" a ON a."Id" = c."AccountId"
LIMIT 20;

---

Getting help

Need	Where to go
Something doesn’t work	Troubleshooting
Need higher access level	Contact your SQL Cor administrator
Found a bug	GitHub Issues
Feature request	GitHub Issues
Consulting / implementation	DM Artem on LinkedIn

---

SQL Cor — Secure SQL Workbench for Creatio. Free and open source. License: MIT.

Document v1.0 · Applies to SQL Cor v1.0 · Last updated 1 June 2026
